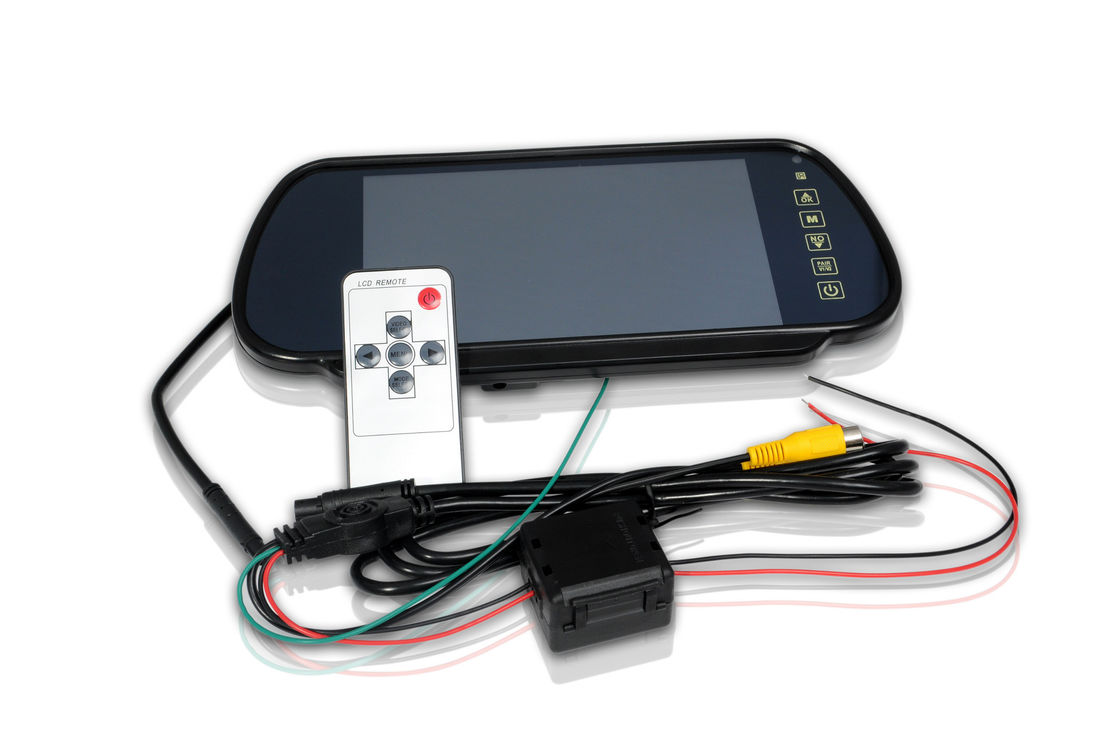

7W Car Wifi Monitor High Resolution 7 Inch Rearview Mirror Display

Vehicle Camera Monitoring System 7 - inch rearview mirror display

The 7 - inch rearview mirror display supports a wide voltage range of 12 - 40V .  The aircraft head input is in standby mode and does not provide power to the camera
7 - inch high - definition rearview mirror display
Pixel :  800 * 480
Display ratio :  16 : 9/4 : 3
Brightness :  300cd / m2
The menu can adjust brightness   contrast   color   display ratio    language    etc
Supported format :  PAL/NTSC
Working voltage :  DC12V-40V
Power :  approximately 7W
2 - way signal input    reverse priority function (requires contact with the transmission line)
Aviation head connector    special power design    does not supply power to the camera in standby mode    extending the lifespan of the camera
Remote control and touch button control
Universal design that can be stuck on the original car rearview mirror

Performance specifications :
Display size

7 "TFT (16:9 widescreen)
Display Color
65536 color
resolving power
eight hundred × 480 pixels
Backlight type
LED
Brightness
320cd/m2
LCD lifespan
50000 hours
Touch Panel
4 - wire precision resistance network (surface hardness 4H)
CPU
800MHz RISC
storage
128MB flash memory + 64MB memory
RTC&Recipe Memory
512KB + real - time clock
Scalable Memory
1 USB Host (≤ 16G)+1 SD Card (≤ 32G)


Printing interface
USB Host/Slave/Serial Port
Ethernet
support
Program Download
USB/Ethernet/Serial
communication interface
COM0 :  RS232/RS485-2/4   COM1 :  RS232/RS485-2/4   COM2 :  RS232

Electrical specifications :
Isolation power supply unit
built - in
Rated power
5.5W
Rated voltage
DC24V
Input Range
DC21V~DC28V
Allow power loss
<5ms
insulation resistance
Over 50M Ω @ 500V DC
Voltage resistance performance
500V AC for 1 minute
Li Yan :
Structural specifications:
Shell color
black
Shell material
ABS plastic
External dimensions
three hundred and ten × two hundred and thirty × 55mm
Installation hole size
two hundred and ninety-eight × 218mm
Weight
1.47 Kg

Environmental specifications :
working temperature
0-50 ℃
Working humidity
10-90% RH (non condensing)
Storage temperature
-10-60 ℃
Storage humidity
10 - 90% RH (non condensing)
Seismic resistance
10 - 25 Hz (2G/30 minutes in X    Y   Z directions)
Cooling method
Natural air cooling
