36V Rear View AHD Vehicle Camera Shockproof Monitoring Reverse Car Camera

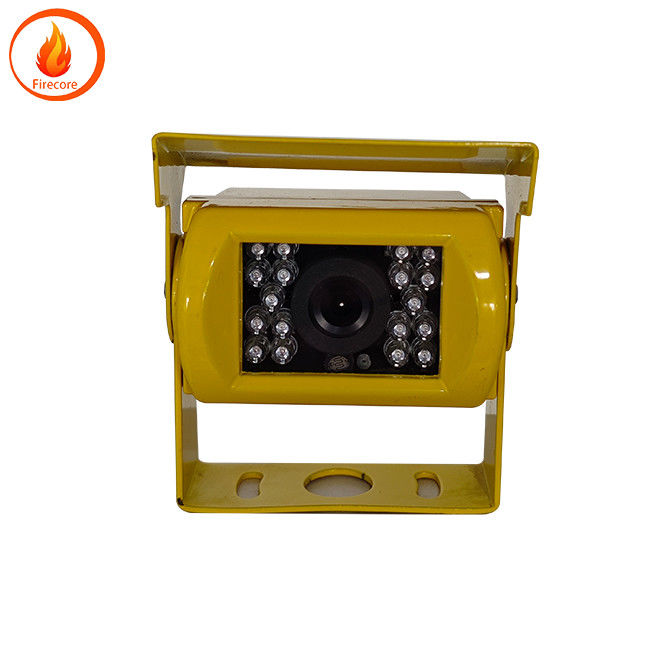

AHD Car Camera Waterproof and shockproof rear view monitoring yellow reverse image

1 Product features
1  . 1 The 360 ° panoramic monitoring system can monitor the surrounding status of the vehicle body through four wide - angle cameras located at the front   sides  and rear of the vehicle  providing drivers with a 360 ° panoramic image to eliminate all blind spots .   Car owners can experience a brand new driving experience with a panoramic view .

1 . 2 The DVD screen and the four car camera screens can be freely switched through normal driving operations such as shifting to reverse gear   turning on the turn signal   or using the steering lever .  When using headlights at night .  You need to press the dual flashing light to trigger the system to enter basic mode .

1 .3 Full journey monitoring    recording and storage   supporting up to 32GB capacity SD cards   this system provides great assistance for complex driving and parking environments . Car owners can have a visual understanding of the surrounding environment of the car to avoid collisions .

1 .4 After parking    when the car encounters a collision    the monitoring system immediately starts multi screen recording to constantly monitor the safety of the car
The host installation of the 1.5 monitoring system is simple and does not damage the original car circuit   The installation of the camera does not affect the appearance of the car   and the camera integrates with the appearance of the car in a beautiful and elegant way .


3 . Electrical parameters
Video standard :  PAL :  50 sessions/second   NTSC :  60 games/second
Resolution :  PAL :  720 × 576 :  NTSC :  720  ×  four hundred and eighty
Video input :  4 BNC l Vp - p 75 Ω
Video output :  4 BNC l Vp - p 75 Ω
Recording format :  AVI    loop overlay recording    each recording segment lasts for 3 minutes
System power consumption :  12V   - 350mA upon startup (excluding camera power consumption)
Environmental temperature :  ­ 30 ℃~60 ℃
Figure ( :  1) Line Connection Diagram
4 .  Line connection diagram :  as shown in Figure (1)
Installation of 5 monitoring systems

Installation of 5 monitoring systems
1 . 1 Camera installation
Figure (2) Monitoring effect of four cameras
This system requires the installation of four cameras   as shown in Figure (2)   Front facing cameras are divided into two types   dedicated and general - purpose cameras. Dedicated cameras are installed on the vehicle emblem   as shown in Figure (3)   Universal external cameras can be installed on air intake grilles   bumpers   or other suitable locations .
Figure (3) Front view installation rendering
The cameras on both sides are installed on the rearview mirror   as shown in Figure (4) .
Figure (4) Installation effect of cameras on both sides
1 . 2 Installation of monitor :  Connect the line to the DVD host according to the wiring diagram .
1 . 3 Installation of the host :  After connecting the lines according to the wiring diagram    place the host in a storage box or install it in a suitable position inside the car .  The vibration sensor is attached to the vehicle body .
