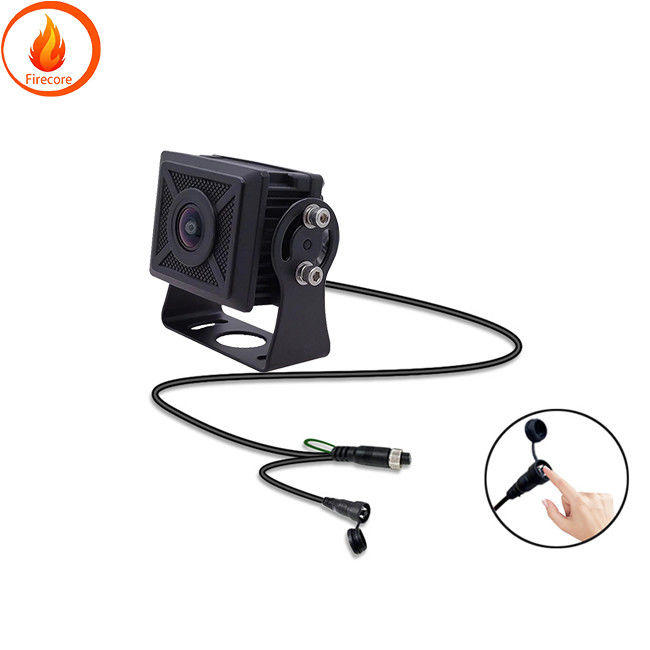

12V / 24V Bus CCTV Camera Security Monitoring High Definition Night Vision
Truck Security Cameras Truck reverse image monitoring 12V24V high - definition night vision
Product parameters
Technical indicators and parameters
Image processor with high resolution supports 1920 * 1080P
Cold start less than 34 seconds Hot start less than 3.5 seconds Warm start less than 33
Positioning module
Second capture time 1.0 second tracking sensitivity 159dBm
Motion detection accelerometer
Video active recognition
Algorithm equipment obstructs twisting and detects abnormal entry within the range
Remote OTA supports remote upgrades (different models have different upgrade paths)
The storage medium comes standard with an industrial grade TF storage card with expandable capacity up to 64G
485 interface universal peripheral interface
LED indicator lights work indicator upgrade indicator etc
Power supply mode onboard 12VDC/24VDC external power supply
Working voltage DC9 - 36V
Working temperature -30 ℃ -+70 ℃
Storage temperature -40 ℃ (-5) -+80 ℃ (+5)
Power consumption : 219mA with infrared on 162mA without infrared on
Dimensions without bracket : 73 * 77 * 53mm, with bracket: 73 * 79.6 * 71mm
Wifi antenna size 50 * 16.8mm
Weight 310g
Protection level IP66
We are a professional manufacturer of research and development production and vehicle monitoring
