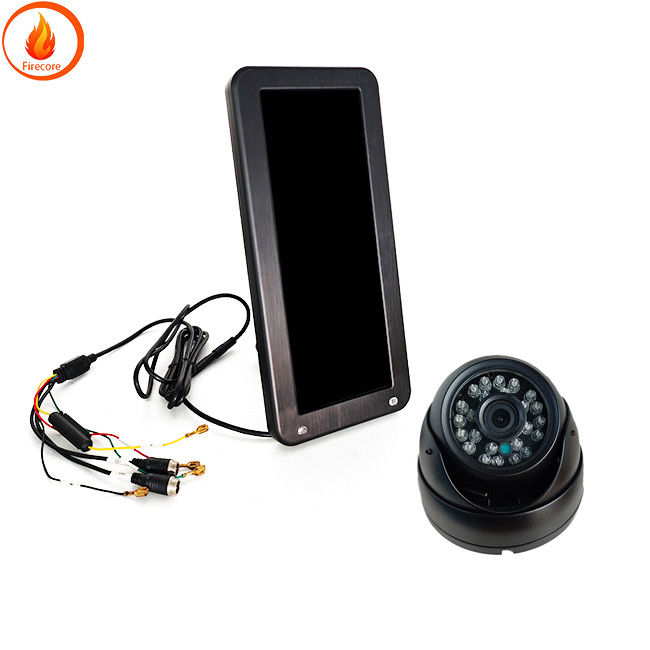

720P / 1080P Blind Spot Truck Security Cameras 36V Electronic Rearview Camera

Truck Security Cameras Blind spot side view electronic rearview mirror 12.3 - inch display camera

Product parameters :
Display :
1 .  Size :  12.3 "(8:3)
2 . Resolution :  1920 * 720P
3 . Backlight :  LED   brightness :  850cd/m2
4 . Contrast :  800 : 1
5 . Perspective range :  up 85 degrees   down 85 degrees
6 . Power supply :  DC9 - 36V
7 . OSD control :  video playback  video settings    display settings   language selection    reverse settings  system settings
8 . Power 5W
9 . Signal input :  720P / 960P / 1080P / CVBS mixed input
10 . File format :  AVI / JPG
11 . Memory :  Supports TF card 256GB
12 . Video compression :  H.264
13 . Recording resolution :  720P / 960P / 1080P / CVBS
14 . System languages :  Chinese  English
15 . Display screen :  single screen / dual screen / 5 : 5 / 6 : 4 / 7 : 3 Operation simultaneously displaying CHI CH2 1080P
16 . Trigger control :  1 - way trigger
17 . Video format :  PAL / NTSC automatic switching
HD camera :
Resolution : AHD 720P/960P/1080P
Horizontal wide - angle :  90 - 150
Waterproof grade :  IP68

We are a professional manufacturer of research and development   production   and vehicle monitoring

Car video recorder   car camera  car usb camera   car display   usb camera

Please contact us by email :  firecore1688@163.com

1 .  The onboard monitoring terminal consists of a camera  onboard DVR  control equipment   and wireless router   The camera is responsible for collecting video data and encoding it by the onboard DVR  The encoded data is transmitted to the remote command and dispatch center through a modular wireless router

2 .  The transmission part mainly uses wireless and wired methods for transmission    On sports vehicles    our company's 3G network is mainly used for video transmission   After DVR collects and compresses video signals   the compressed video data is sent to the command and dispatch center through wireless network   The wireless router completes the communication between DVR and IP network in the system   Wireless routers maximize the throughput of the system   making wireless surveillance videos smoother    Wireless routers support VPN tunneling  fixed IP dialing  and bidirectional authentication function    fully ensuring the security and stability of the system

3 .  The monitoring center installs corresponding server systems and platform software in the monitoring center to achieve unified management of vehicles and yard equipment    and distributes data and video streams for staff to monitor    In practical application systems    there will be multiple servers    mainly including management servers     recording servers   streaming forwarding servers    and several application servers   each providing several functions

4 .  The application software staff can operate and manage the system through the client software   obtain corresponding videos and other related information according to user permissions   and also issue instructions to the driver through the system for remote command with a strong sense of presence    In emergency situations    the system can be used to command and guide passengers

5 .  System interconnection :  To further connect with other systems through this platform   the platform software reserves multiple interfaces to achieve information sharing and linkage with industries such as public security    media, and logistics    It also has the function of publishing information to public users    Other business systems can also be integrated into this system to achieve unified operation and effective linkage of various systems
