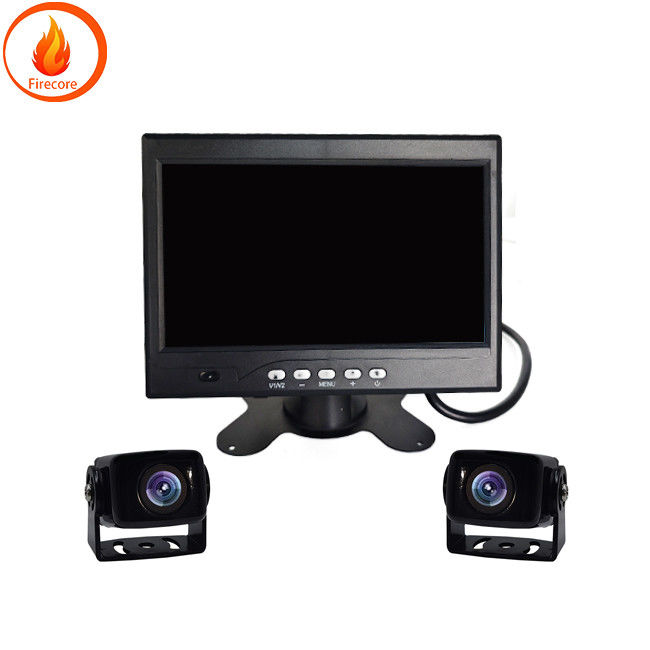

24V Vehicle Camera Monitoring System AHD Reverse Car 7 Inch Display

Vehicle Camera Monitoring System AHD reverse image high - definition general - purpose truck 7 - inch display

We are a professional manufacturer of research and development  production   and vehicle monitoring

Car video recorder   car camera    car usb camera    car display    usb camera

Please contact us by email :  firecore1688@163.com

Product parameters

Technical indicators and parameters

Image processor with high resolution supports 1920 * 1080P

Cold start less than 34 seconds    Hot start less than 3.5 seconds   Warm start less than 33

Positioning module

Second   capture time 1.0 second   tracking sensitivity   -159dBm

Motion detection accelerometer

Video active recognition

Algorithm equipment obstructs twisting and detects abnormal entry within the range

Remote OTA supports remote upgrades (different models have different upgrade paths)

The storage medium comes standard with an industrial grade TF storage card   with expandable capacity up to 64G

485 interface universal peripheral interface

LED indicator lights   work indicator   upgrade indicator   etc

Power supply mode onboard 12VDC/24VDC external power supply

Working voltage DC9 - 36V

Working temperature -30 ℃ -+70 ℃

Storage temperature -40 ℃ (-5) -+80 ℃ (+5)

Power consumption :  219mA with infrared on   162mA without infrared on

Dimensions without bracket :  73 * 77 * 53mm   with bracket :  73 * 79.6 * 71mm

Weight 310g

Protection level IP67

In order to ensure road safety  the onboard camera function needs to operate around the clock as much as possible   Car mounted cameras perceive the surrounding environment through photosensitivity and algorithms    Therefore   in scenarios with insufficient lighting such as driving at night or passing through tunnels   it is necessary to enhance the camera's night vision ability   At present    car night vision systems can be divided into three categories based on imaging principles and lenses :  low light  near - infrared  and far - infrared
