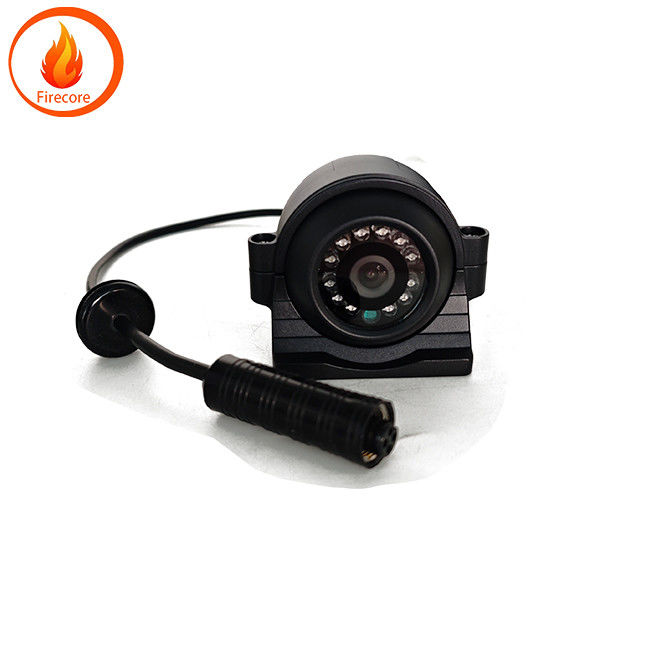

IP67 Truck Side View Camera 24V AHD infrared night vision security camera

Truck Security Cameras Infrared night vision truck blind spot AHD side view monitoring reverse image

The input voltage of the camera is 12 - 24V
The standard contact points for aviation heads are :  1 positive pole 2 negative pole 3 air 4 video .  If you need other contacts   please contact customer service !

(1) Side view :  In the basic graphics mode   when turning on the left or right turn lights   the display screen switches to the left and right display modes   cancels the turn signal   and the screen automatically switches to the basic graphics mode   with a delay of 5 seconds to turn off the display and switch to navigation and audio mode

(2) Side and rear view :  When reverse gear is engaged and turn signals are turned on   the display screen switches to a three screen display mode  where the lower half of the display screen displays the reverse rear view screen and the upper left corner displays the front left image of the car .  The upper right corner displays the front right image of the car .  On this basis    exit reverse gear  and when the turn signal is powered on  the display screen switches to the left and right display modes   The left side displays the left front screen of the car   and the right side displays the right front screen of the car   When the turn signal is cancelled    the screen automatically switches to the basic screen mode   with a delay of 15 seconds to turn off the display and automatically switch to the navigation audio mode

(3) During the operation of the car    pressing the membrane switch or lifting the steering lever upwards can enter the basic screen mode

(4) When controlling the steering lever    the lever can only be lifted once at a time    If you need to enter the next screen  you need to pause for one second before operating    Continuous operation for more than two times is invalid    Thin film switch is optional

(5) When using the headlights at night    the steering lever control is ineffective    In this case   press the dual flashing lights to trigger and then turn off the dual flashing lights    At this time   the system enters basic mode    and the operation method for switching the display screen is shown in steps (1) -  (7) .

Control flowchart of 360 ° panoramic monitoring system :
Figure

(6) Control flowchart of 360 ° panoramic monitoring system
Note :  When using the headlights    press the dual flashing lights to trigger the main unit    turn off the dual flashing lights at any time    and the monitoring system enters basic mode
