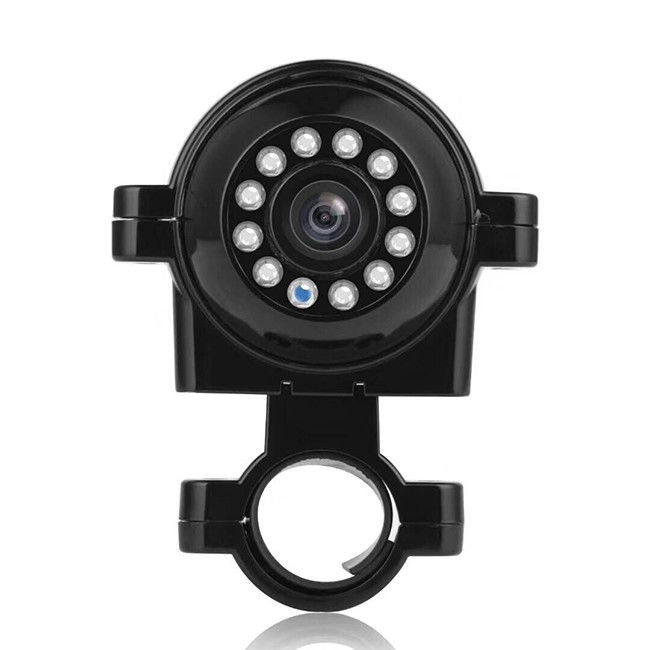

Panoramic Car CCTV Camera CMOS Sensor Blind Spot Car Camera AHD

Name: Panoramic Car CCTV Camera CMOS Sensor Blind Spot Car Camera AHD
Brand: Shenzhen Firecore Technology Co., Ltd.
SKU: HX-706
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Huoxin Technology

Model Number: HX-706

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Each camera shall be packed in a transparent moisture-proof bag and placed in a small box. The top and bottom of the box shall be protected with pearl wool. The box shall be packed and then be packed/sealed with a large carton

Delivery Time: 15-30

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                panoramic car cctv camera, car cctv camera cmos, blind spot car camera ahd


Model:	HX-706	Resolution Ratio:	1080P
Low Illumination:	0.35lux (f1.3,50ire,agc On)	Shot:	F=3.6mm/2.8mm
Power Supply:	Dc12v±10%	Storage Temperature:	-20℃~70℃[-4℉~158℉

Model:	HX-706
Resolution Ratio:	1080P
Low Illumination:	0.35lux (f1.3,50ire,agc On)
Shot:	F=3.6mm/2.8mm
Power Supply:	Dc12v±10%
Storage Temperature:	-20℃~70℃[-4℉~158℉

Panoramic Car CCTV Camera CMOS Sensor Blind Spot Car Camera AHD

Blind spot car mounted camera AHD high-definition infrared panoramic side view truck lifting camera

Technical parameters:
Image sensors : sharp   sony 1/3 'progressive scan CCD
Horizontal resolution : 420 480   520 lines
Low illumination : 0.35lux (f1.3 50ire   agc on)
Video output level : 1.0v (p-p)/75 ω   Composite, BNC
Video signal - to - noise ratio : greater than 48dB (AGC off : greater than 50dB)
White balance : ATW fixed
Gain control : AGC
Aperture control : electronic aperture (fixed)
Lens : f=3.6mm/2.8mm
Display mode : color/black and white automatic
Synchronous system : internal synchronization
Port : Video signal 1.0vp-p/75 ω (bnc)
Power supply : DC12V ± 10%
Working conditions : Working temperature : -10 ℃~50 ℃ [+14 ℉~122 ℉]   humidity : less than 90% rh
Storage temperature : -20 ℃~70 ℃ [-4 ℉~158 ℉]   humidity : less than 70% rh

Function:
Fully designed for vehicle and industrial environments .
The new model of CMOS sensor has high clarity and stability far exceeding similar products .
L supports multiple image formats of 320 * 240640 * 4801024 * 7681280 * 10241920 * 1080 and also supports user - defined format sizes .
Optional image format   two - stage compression ratio selection   infrared night vision
External triggering convenient for connecting multiple sensor signals automatic light filling and automatic infrared light filling in dark environments .
The image compression ratio can be adjusted from -20%   allowing users to freely balance data flow and image quality .
Add rich control interfaces .
Support image mirroring and rotation .
Waterproof   shockproof   heat - resistant   and high humidity .
