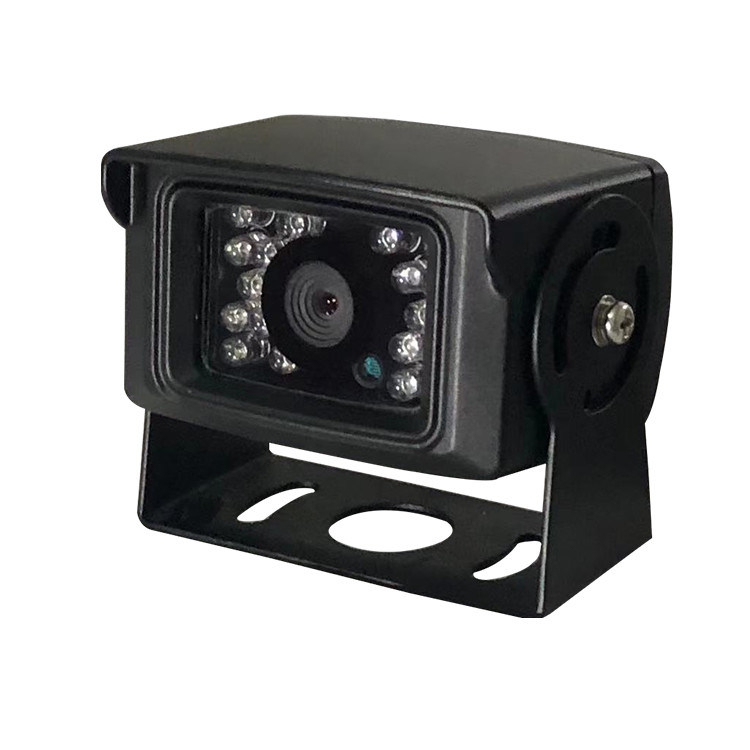

Vehicle Car Surveillance Camera Reversing AHD Rear View Camera

AHD Car Camera Infrared night vision bus reversing camera AHD rear view vehicle image

Parameters :
Image sensor  :  COLOR CVBS/AHD
● Clarity  :  CVBS - 700 cable/720P/960P/1080P
Color standard  :  PAL/NTSC
● Infrared distance  :  ≤ 10 meters (18 night vision lights)
● Adopting Qualcomm bright   high - definition   wide - angle dedicated lenses
Visual angle :  approximately 120 degrees/140 degrees/160 degrees optional
3D noise reduction   high image quality   fast dynamic video response   no trailing shadows   vivid colors   and fast sensitivity recovery  .
Equipped with curved glass protection design   it can achieve large angles without scratching the lens and causing blurry images .
● Synchronization method :  Internal synchronization
Gamma correction :  0.45
Signal to noise ratio :  ≥ 48dB (AGC Off)
Electronic shutter On :  EIA 1/60~1/100000 Sec   CCIR 1/50~1/100000 Sec
Off :  EIA 1/60 Sec   CCIR 1/50 Sec
Gain Control (AGC) :  Automatic
Video output :  1.0Vp - p 75 ohm
● Connection wire :  4 - core aircraft connector (optional RCA/4 - core S terminal/6 - core S terminal)
Waterproof level :  IP68 (waterproof process for submer

Based on technological research and innovation   and after more than a decade of development  we have a deep technological accumulation and leading market share in fields such as AI video intelligent recognition   vehicle monitoring and recording  blind spot radar, reverse rearview   wireless transmission monitoring   etc .  We have also obtained multiple appearance patents and utility model patents   and have CF    FCC   ROHS and other certifications   which are widely used in buses   trucks   special vehicles   engineering vehicles   agricultural vehicles   etc Forklifts and other types of transportation and vehicles

Sai Te Mei specializes in designing large vehicle environments   wide range of working voltage applications   a wide range of product types  high - definition visual effects   and high stability product quality .  Its core technology style   which integrates one plug and two plug installation   driving monitoring   and reverse view   has been widely recognized in the market and praised by many customers .  The products are exported in large quantities and are committed to Yutong   Jinlong   Neoplan    Ankai   and Heli Forklifts in China Supporting services from well - known domestic automobile manufacturers such as Sany Heavy Industry .  Exported to markets in Europe   America    and Southeast Asia    highly trusted by customers
