Front View ADAS Car Surveillance Camera Wide Angle Infrared Night Vision

Name: Front View ADAS Car Surveillance Camera Wide Angle Infrared Night Vision
Brand: Shenzhen Firecore Technology Co., Ltd.
SKU: HX-799
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Huoxin Technology

Model Number: HX-799

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Each camera shall be packed in a transparent moisture-proof bag and placed in a small box. The top and bottom of the box shall be protected with pearl wool. The box shall be packed and then be packed/sealed with a large carton

Delivery Time: 15-30

Payment Terms: T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                adas car surveillance camera, car surveillance camera wide angle, Front View adas car camera


Model:	HX-799	Supply Voltage:	12-24V
Weight:	0.25	Signal System:	PAL
Imaging Element:	2M Pixel CMOS	Resolution Ratio:	1080P

Model:	HX-799
Supply Voltage:	12-24V
Weight:	0.25
Signal System:	PAL
Imaging Element:	2M Pixel CMOS
Resolution Ratio:	1080P

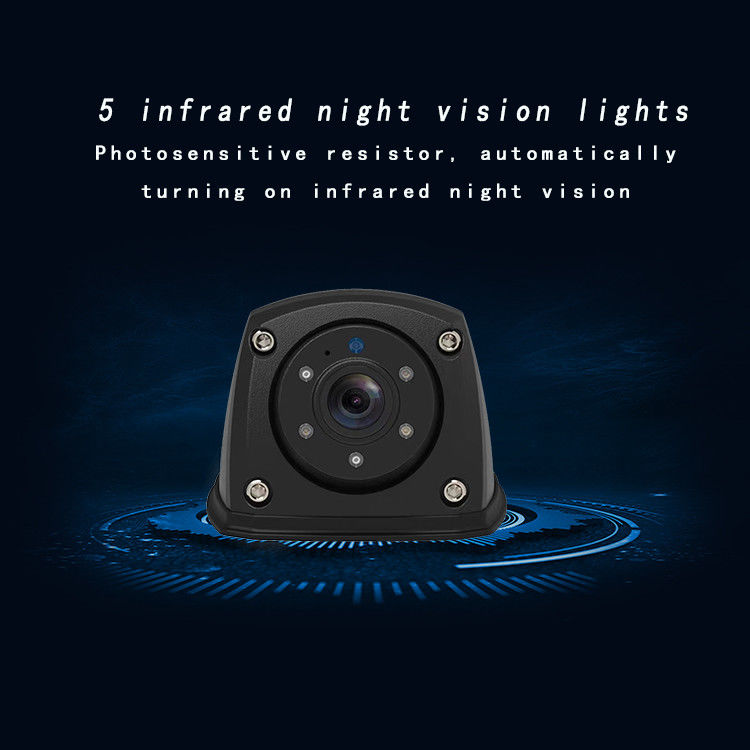

Front View ADAS Car Surveillance Camera Wide Angle Infrared Night Vision

Side view camera, million high-definition wide-angle side view camera, truck infrared night vision side view monitoring

The in car camera is the core sensing device of ADAS (Advanced Driver Assistance System) . Currently global intelligent driving has ushered in a window of transition from L2 to L3/L4 and the number of cameras installed will increase from 3-8 to 8-12 . According to CINNO Research the number of cameras installed in passenger cars in the Chinese market will exceed 100 million in 2025 and the compound annual growth rate from 2021 to 2025 will reach CAGR 21%.
At present in car cameras are mainly divided into front view surround view rear view side view and built-in cameras .

The front view camera is mainly installed on the front windshield, usually equipped with 1 - 4 monocular/binocular cameras used to achieve functions such as front vehicle collision warning (FCW) lane departure warning (LDW) traffic sign recognition (TSR) pedestrian collision warning (PCW) etc.

signal pattern	NTSC PAL
camera lens	2. 1 2. 8 3. 6
pixel	200/1080P 130/960P
Low illumination	0.0001 Iux-O Lux Infrared start
synchronous mode	Internal synchronization
Signal to Noise Ratio	>=46dB
dynamic range	72d8(HDR)
Electronic shutter	1/60 (PAL. 1/50)-1/100000s
automatic balancing	open (ON/OFF)
gain control	open (ON/OFF)
Back light supplement	open(HLC High brightness/BLC)
Auto Iris	image(Video/DC)
power supply	DC12V90mA(When infrared is turned on250mA)
weight	0. 00g
Shell material	Aluminum alloy/stainless steel
interface	AV/USB/BNC/Aircraft Head interface

Front View ADAS Car Surveillance Camera Wide Angle Infrared Night Vision 0
